Before you begin
Asset Risk Predictor must be purchased separately from a Fiix representative. To learn more, see Asset Risk Predictor FAQ.
Required permissions: See Enable access to Asset Risk Predictor. To use filters, you must be assigned either a user or creator seat in Analytics.

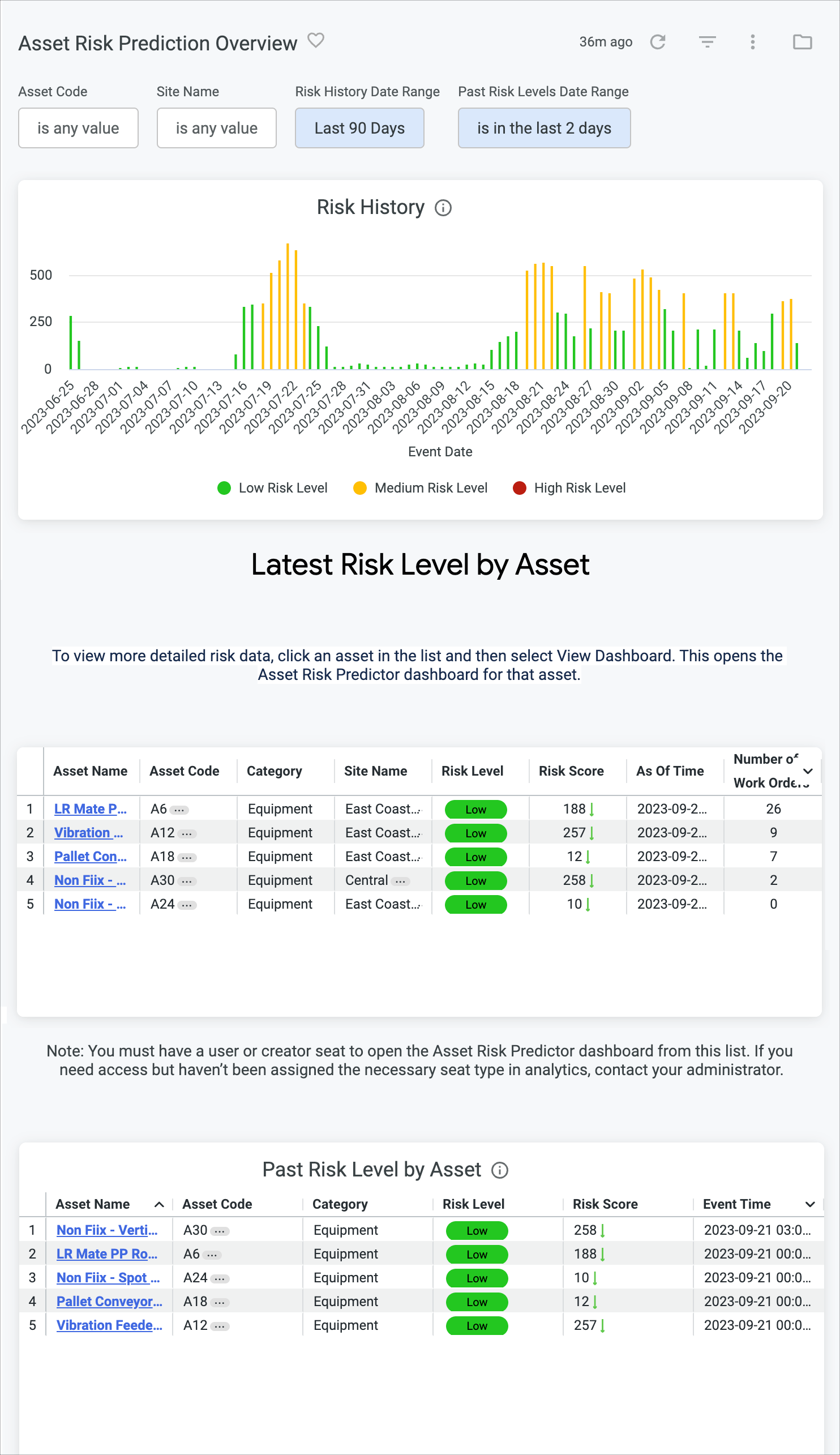

This dashboard provides an overview of the assets you've chosen to include in Asset Risk Predictor:
You can filter the dashboard by:
- Asset code
- Site name
- Risk History Date Range (filters the Risk History chart)
- Past Risk Levels Date Range (filters the Past risk level by asset tile)

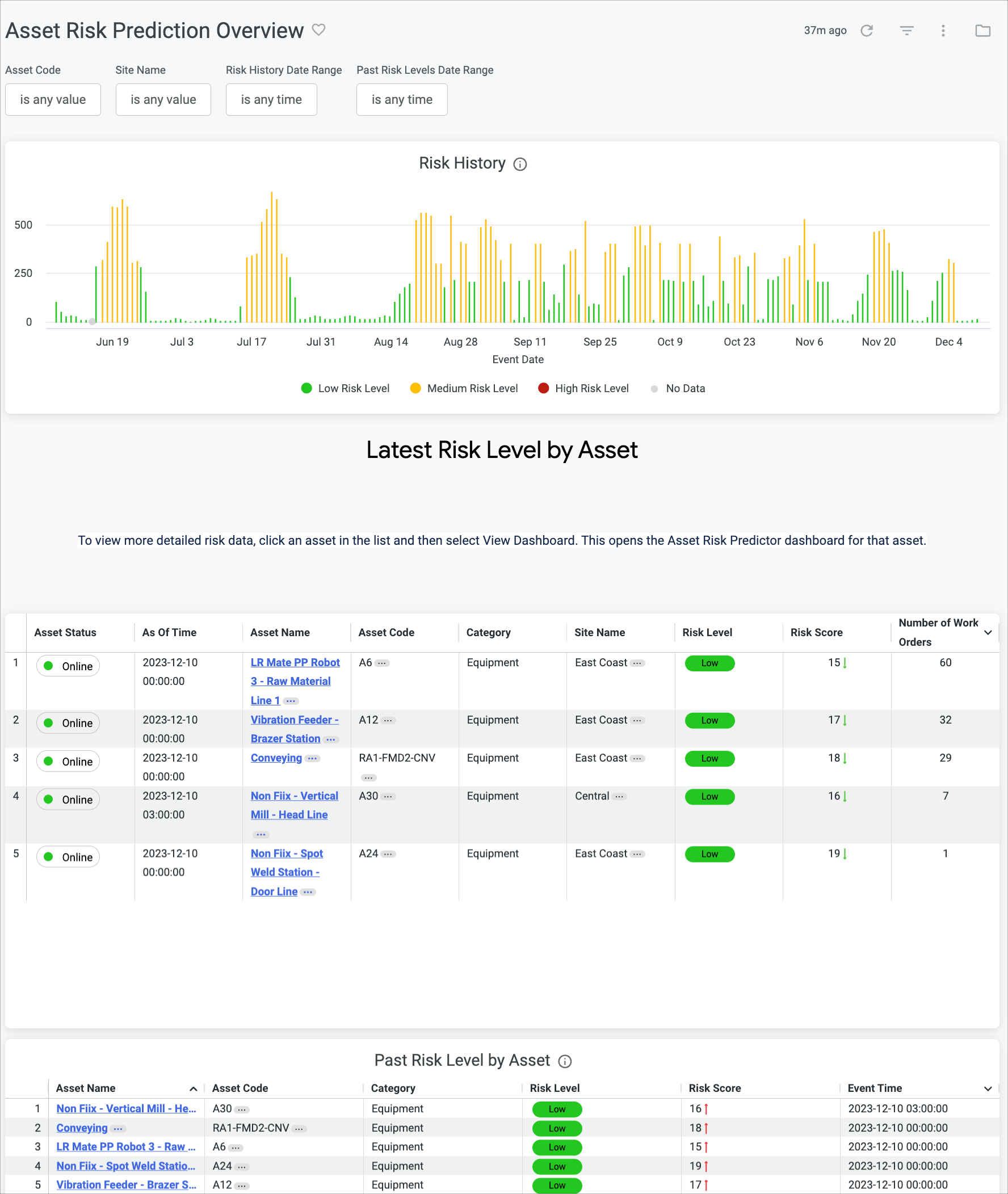

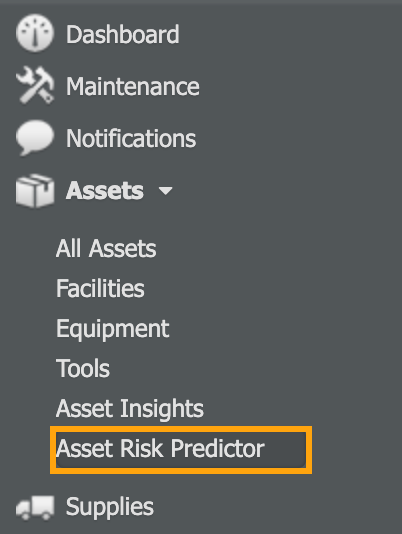

To view this dashboard, go to Assets > Asset Risk Predictor:
The dashboard is divided into 2 tiles, which are described in the sections below:
Risk history section

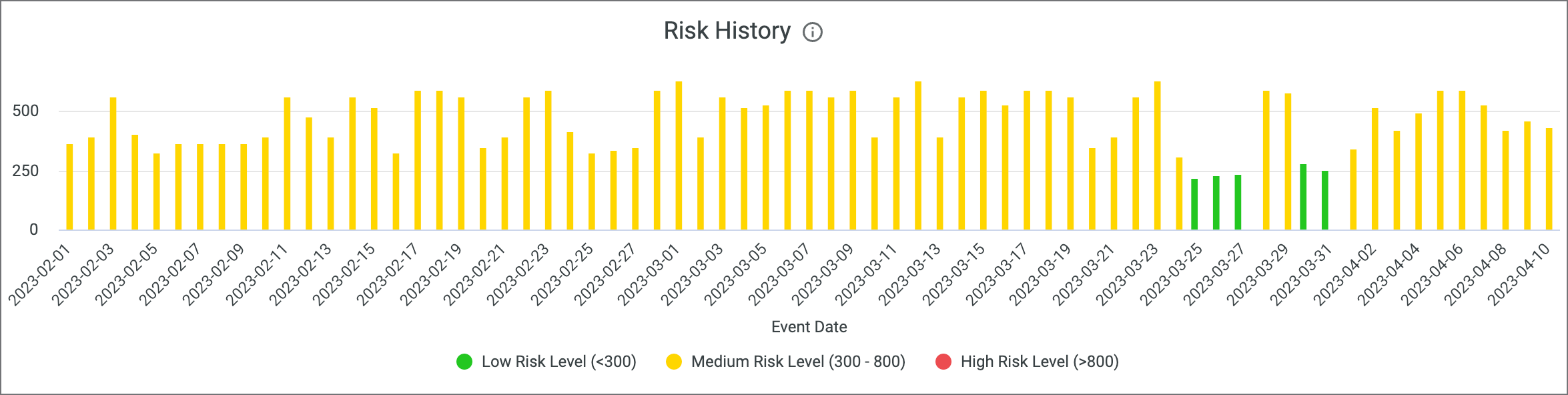

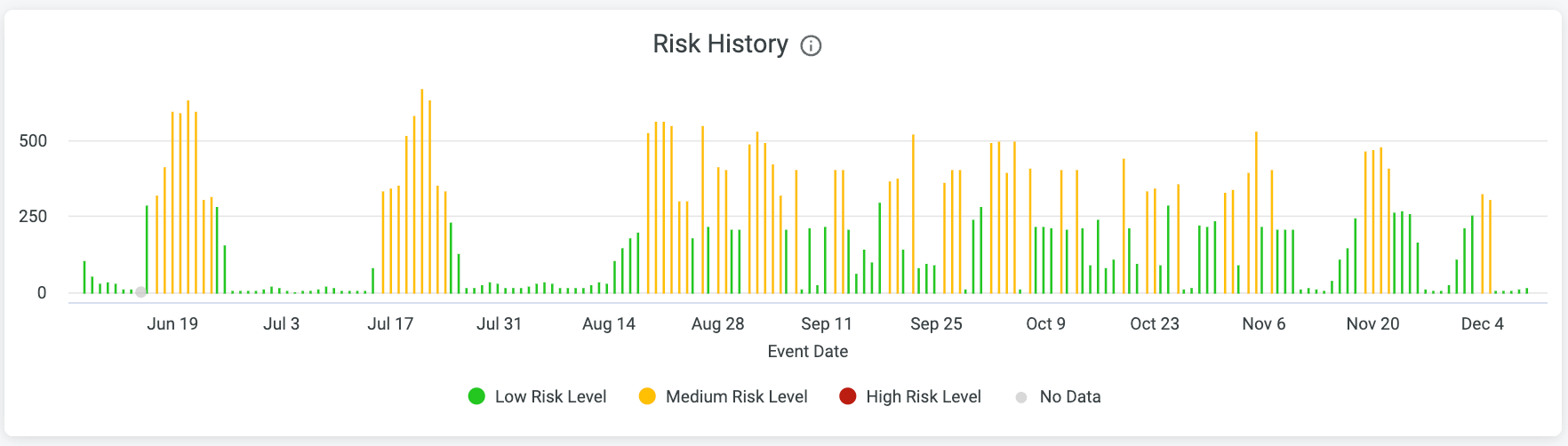

The chart in this section shows the daily risk history for the last 3 months. For each day, the chart displays the average risk level for all of the assets you've included in Asset Risk Predictor:
To hide columns for a specific risk level, click the risk level in the legend. Click the risk level a second time when you want to display it again.

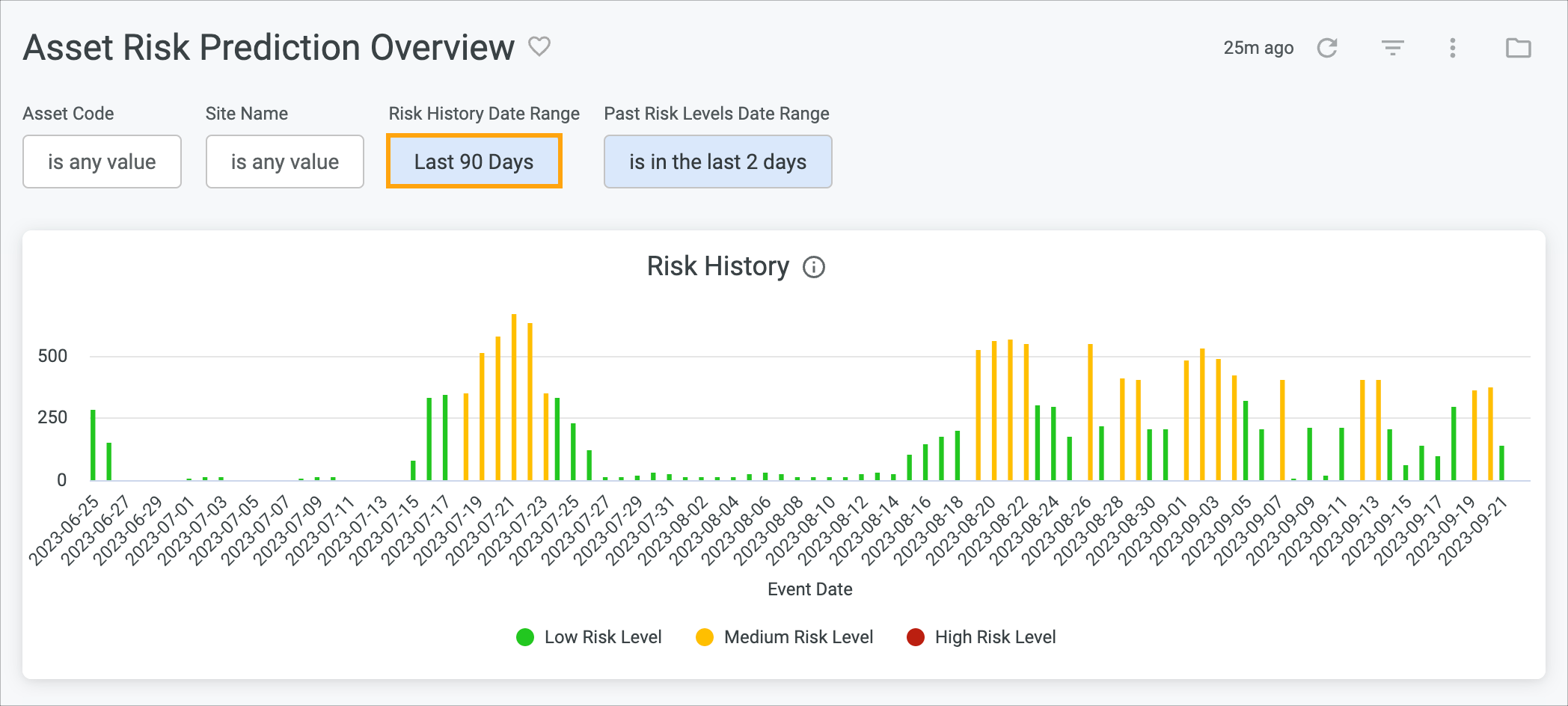

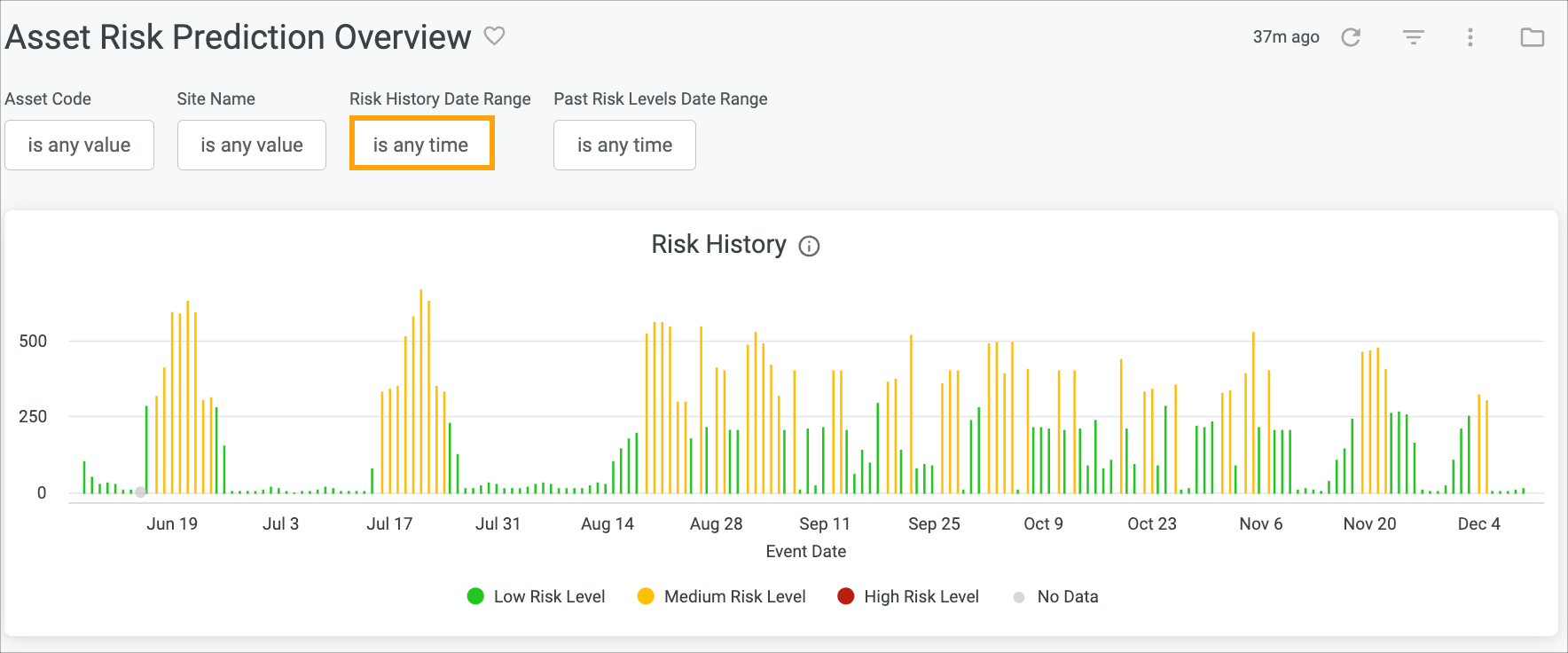

To change the dates displayed in the chart, select new dates in the Risk History Date Range filter:
Latest risk level by asset

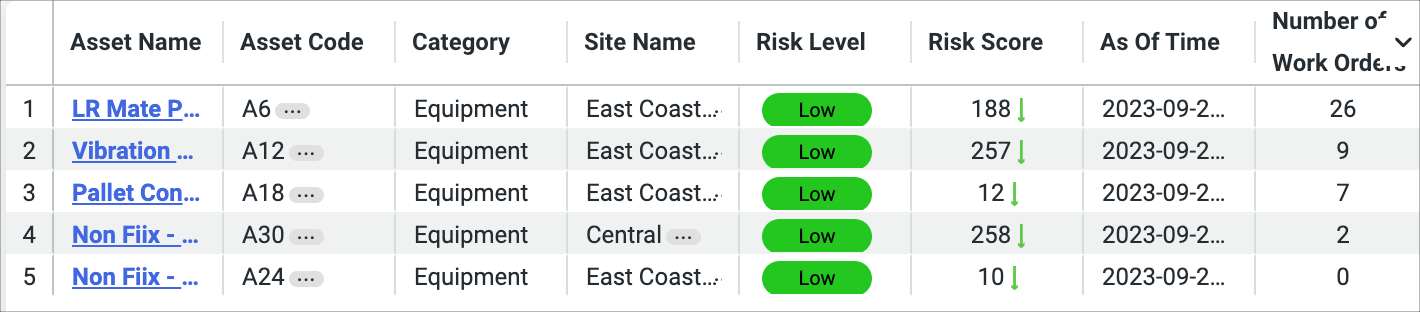

This table lists the latest risk level for each asset you've included in Asset Risk Predictor:
The table includes the following columns:
The asset's name.
To view the Asset Risk Predictor dashboard for a specific asset, click its name and then click More Details in the drop-down list. To learn more, see Asset Risk Predictor dashboard.
|Asset code||The asset's code (from the Code field of the asset record).|
|Category||The category assigned to the asset.|
|Site name||The site the asset belongs to.|
The most recent (typically yesterday's) daily risk level for this asset, which is determined based on its risk score.
By default, the risk scores correspond to risk levels as follows:
If necessary, your organization can customize your risk levels so that they correspond to different risk scores. To learn more, see Change risk level definitions for Asset Risk Predictor.
The most recent (typically yesterday's) risk score for this asset, which represents the likelihood of a critical error occurring, based on our analysis of your sensor data. To learn more about how risk scores are calculated, see How risk scores are calculated in Asset Risk Predictor.
The arrow next to the score indicates whether the score has increased or decreased from the last report.
|Number of work orders||The number of open work orders for the asset.|
Past risk level by asset

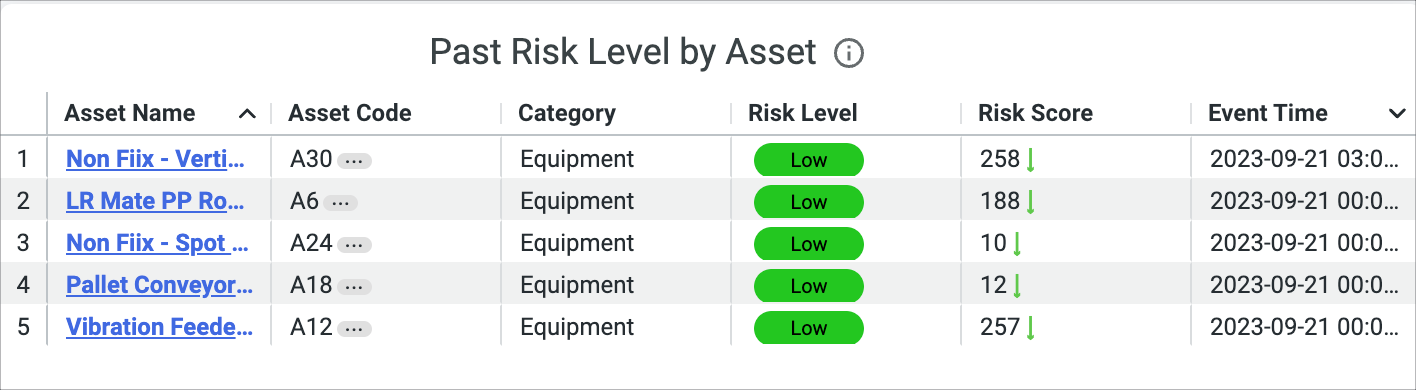

Similar to the tile above, this tile lists the past risk levels for each asset as of the dates you select, allowing you to dive deeper into risk data for specific dates:

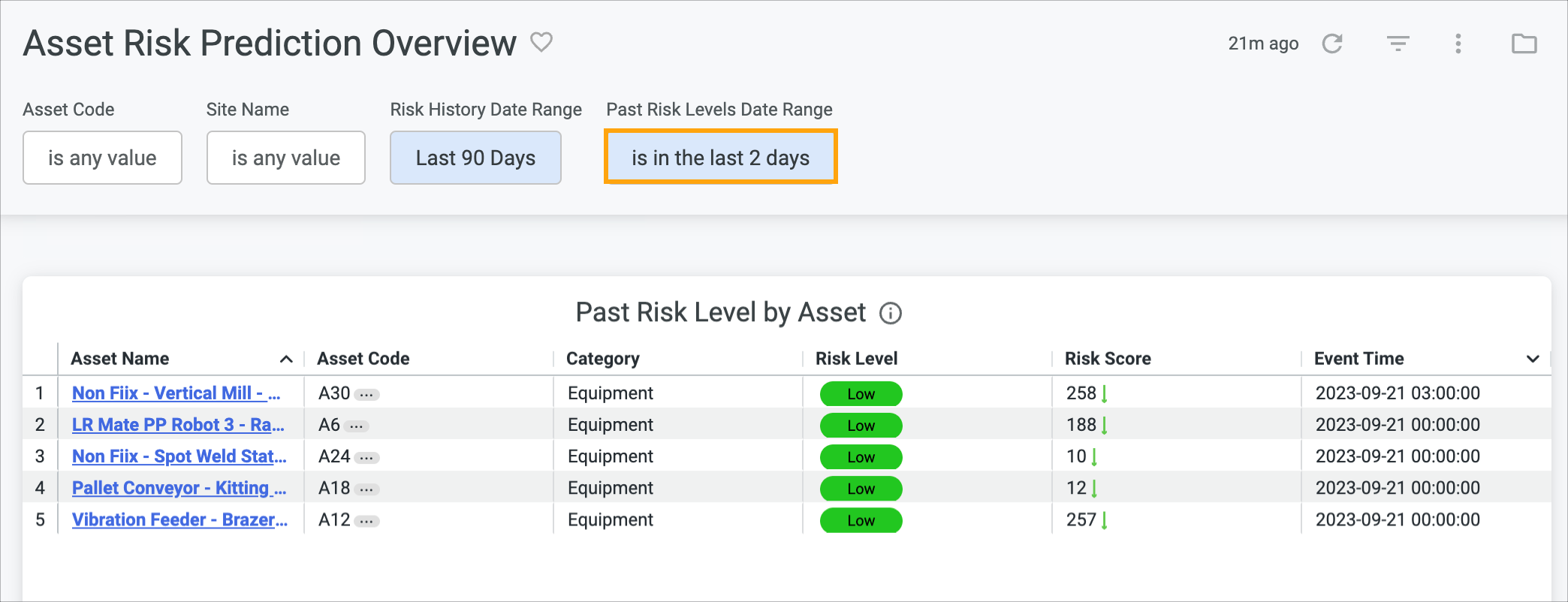

To change the dates displayed, select new dates in the Past Risk Levels Date Range filter:
