Sensor Risk Overview dashboard

This dashboard provides an overview of your sensor data from Asset Risk Predictor:

This information is often needed for deeper analysis or troubleshooting, so we provide access to the initial aggregated sensor data received from the asset, along with its corresponding risks.

Similar to the Asset Risk Predictor dashboard, you access this dashboard via the other Asset Risk predictor dashboards. To view the dashboard:

1. Go to Assets > Asset Risk Predictor. This opens the Asset Risk Prediction Overview dashboard.
2. In the Latest Risk Level section, click the asset you want to view risk predictions for.
3. In the drop-down list, click More Details:

   The application displays the Asset Risk Predictor dashboard for that asset.
4. In the Latest Daily Sensor Risk Level section, click the sensor you want to view risk data for.
5. In the drop-down list, click More Details:

   The application displays the Sensor risk overview dashboard for that sensor.

The first tile displays the name of the sensor you're viewing the dashboard for:

The remaining tiles are described in the sections linked below:

• Anomalies and Recommendations
• Asset Risk History
• Sensor Risk History
• Sensor Reading History

Anomalies and Recommendations

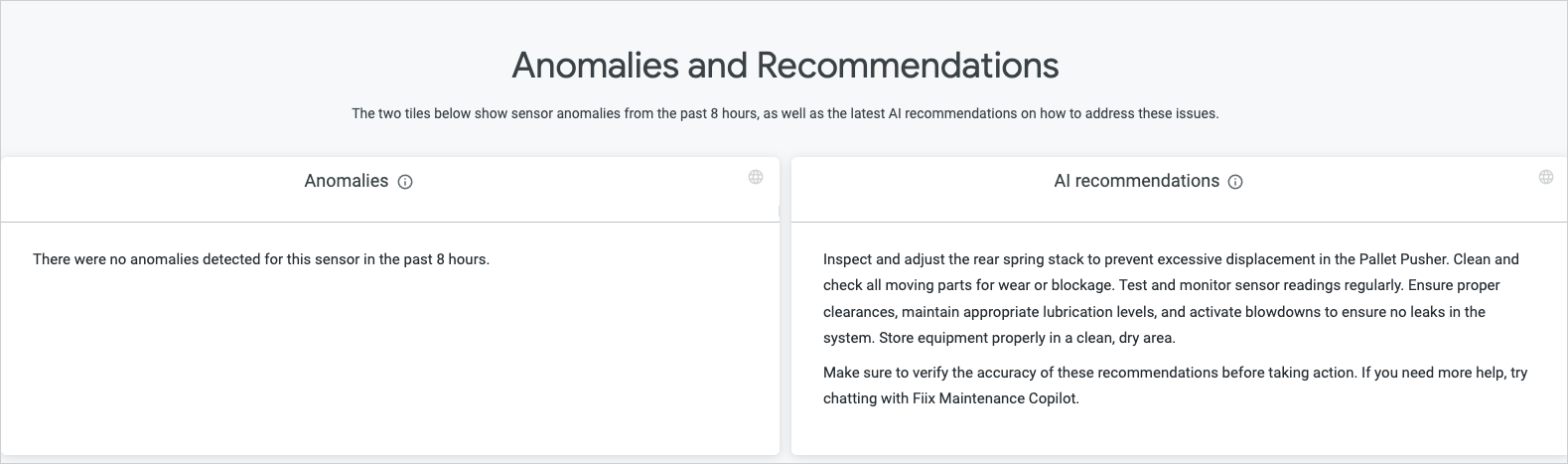

The Anomalies tile summarizes abnormal sensor data from the past 8 hours, while the AI Recommendations tile shows AI-generated recommendations for addressing issues with the asset or sensor:

Asset Risk History

This tile shows you the daily risk history for the sensor's parent asset:

Similar to the Daily Risk History tile in the Asset Risk Predictor dashboard, the values in this chart are the average scores for each day across all the sensors associated with the asset. If you hover your cursor over a day's column, it displays the name of the sensor that had the highest score for the most hours during that day:

To hide columns for a specific risk level, click the risk level in the legend. Click the risk level a second time when you want to display it again.

You can view up to a year of historical data via the explore:

1. In the tile's action menu , click Explore from here:

2. In the Filters section, change the event date filter:

3. Click Run.

Sensor Risk History

This tile shows the hourly risk history for this specific sensor:

Unlike the tile above, this data is for this specific sensor only; it doesn't show data from any of the other sensors belonging to the same parent asset. Each column shows the average risk score from that sensor during that specific hour.

To hide columns for a specific risk level, click the risk level in the legend. Click the risk level a second time when you want to display it again.

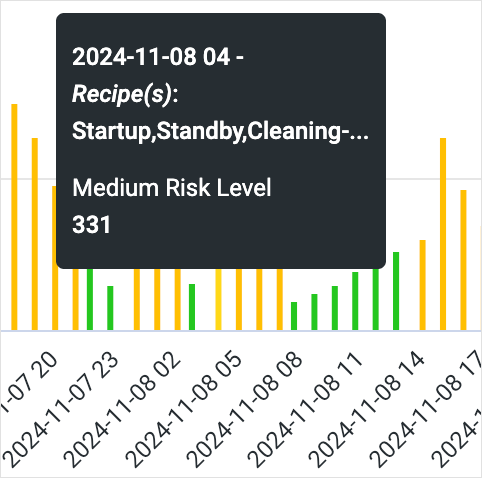

To see which recipes the asset was running, hover over a column in the Sensor Risk History chart. All the recipes the asset ran that hour are displayed in a comma-separated list within the tooltip:

You can view up to 30 days of historical data via the explore:

1. In the tile's action menu , click Explore from here:

2. In the Filters section, change the event date filter:

3. Click Run.

Sensor Reading History

This tile shows the reading history for this specific sensor. Each value displayed is the average sensor reading from that hour. You can use this data to compare sensor readings with sensor risks at certain points in time. For example, when the risk is high, you can check what the readings (temperature, vibration, etc.) were at that point in time.

Like the other charts, you can filter it by clicking an item in the legend.

You can view up to 30 days of historical data via the explore:

1. In the tile's action menu , click Explore from here:

2. In the Filters section, change the event date filter:

3. Click Run.
